Module 15: Persistence Cleanup and Defense Evasion

← Return to the Red Team Course #

Cleanup restores agreed system state after an exercise. It removes or reverses the team’s changes while preserving the evidence needed to explain them. Deleting a visible file is only one possible step, and a failed query does not prove an artifact is absent.

This module develops a restoration ledger linking ownership, baseline, action, verification, and unresolved work. It also separates defense-evasion testing from evidence destruction, so the assessment’s final state remains reviewable.

Allow 30–45 minutes. Difficulty: intermediate. The worked cleanup case uses synthetic records.

Learning Outcomes #

• Define restoration, artifact ownership, and verification scope.
• Explain how registry identity and loaded hives affect cleanup.
• Inspect the exact Run entry from the earlier benign exercise.
• Analyze failed queries, file identity changes, and remaining processes.
• Create a restoration ledger with an independent review condition.

Before You Begin #

Bring the baseline records from user persistence and privileged persistence . You need the original account SID, registry location and view, named values, owned files, process observations, and any configuration fields changed during the exercise.

Use the same disposable VM for the inspection example. If you did not complete the Notepad Run-entry exercise, use the synthetic case instead. This lesson does not create another persistence mechanism or assume every reader has a matching artifact.

Define the Restoration Target #

A created object usually needs removal if the exercise owns it and the agreement requires no residual artifact. A modified object needs restoration of the affected fields to the agreed baseline. An observed object needs no cleanup merely because it appeared in a tool’s output.

For example, the earlier Notepad exercise created a named Run value, not the Windows Notepad application. Removing the lab value and closing its identified window addresses those changes. Deleting the operating-system executable would damage an unrelated component.

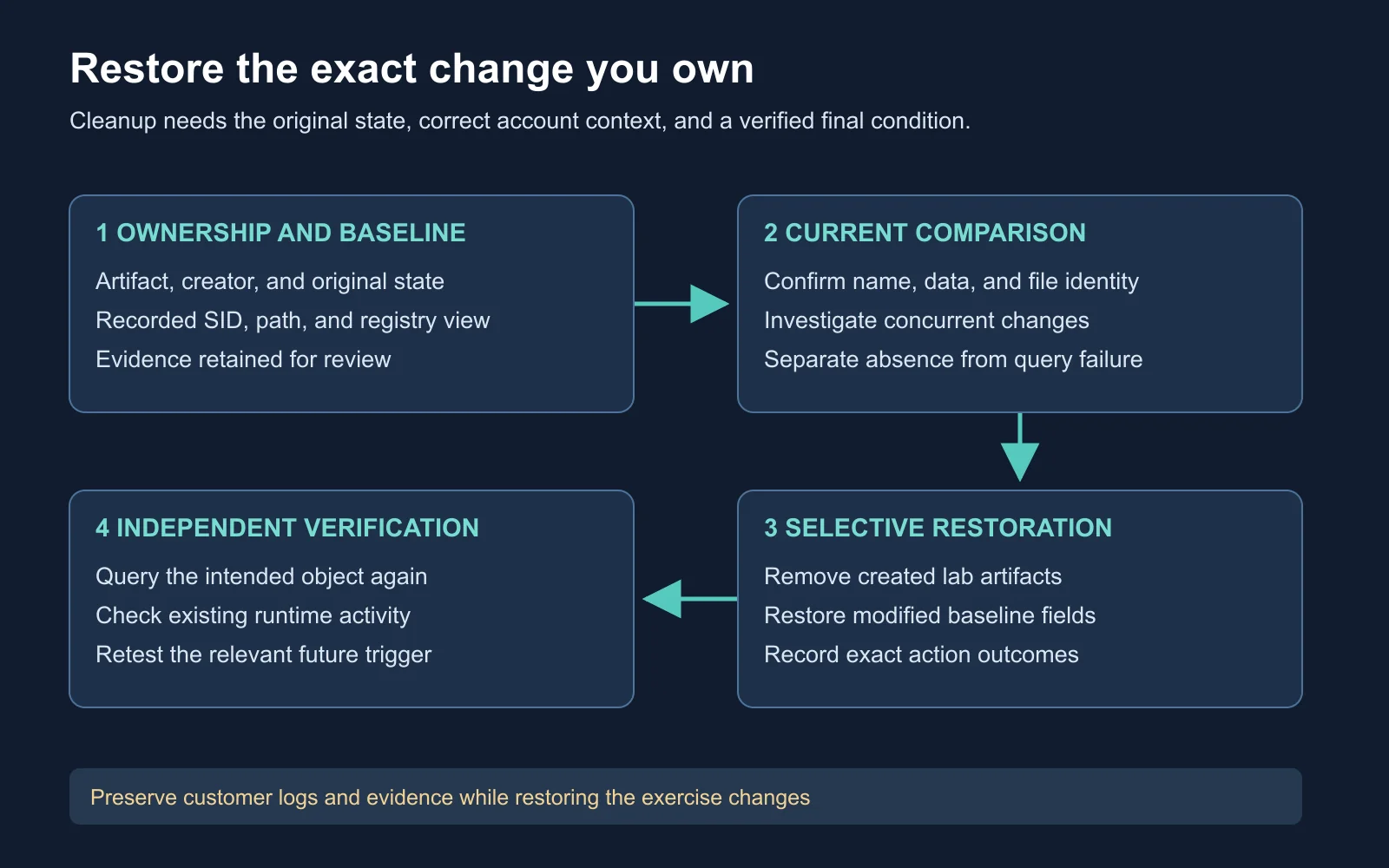

Follow the Restoration Loop #

The restoration loop begins with a comparison, not a deletion command. Confirm the current object still matches the team’s recorded change. Apply the narrow reversal, then independently check the intended final state and any affected trigger.

Concurrent changes complicate rollback. If an administrator edited a value after the exercise created it, blindly restoring an old snapshot might erase legitimate work. Record the mismatch, preserve the current value, and let the system owner resolve the conflict.

Decision rule: An uncertain owner or changed value is a review task, not permission for broader deletion.

Resolve Registry Identity #

HKCU refers to a current-user registry mapping. Its behavior follows process and security context, with caching details relevant to impersonating applications. A SYSTEM-context cleanup tool should not assume this handle refers to the interactive user who created the artifact. Microsoft’s predefined registry keys .

Use the recorded SID and account authority from the creation record. A short username alone is ambiguous across local and domain accounts. SID length does not distinguish a local account from a domain account, and a _Classes suffix identifies a different registry branch rather than an account’s domain status. Microsoft’s security identifier documentation .

Loaded hives are not a complete user-account inventory. If the target profile is unloaded, a live HKU listing does not prove its persisted configuration is clean. Prefer verification in the original user’s controlled session, or an owner-managed profile inspection procedure with its own rollback plan.

Inspect the Exact Value #

whoami.exe /user
reg.exe query HKU

Identity inspection records the account executing cleanup and lists the loaded registry roots visible to it. Compare the result with the SID captured during the earlier exercise. Do not choose a SID by its position, length, or resemblance to a screenshot.

$recordedSid = 'S-1-5-21-111111111-222222222-333333333-1001'
$runKey = "HKU\$recordedSid\Software\Microsoft\Windows\CurrentVersion\Run"
reg.exe query $runKey /v CourseLab-Notepad /reg:64
$queryExitCode = $LASTEXITCODE
$queryExitCode

Replace the synthetic SID with the exact recorded SID before running the query. /v selects the lab value, and /reg:64 matches the earlier exercise’s 64-bit registry view. $LASTEXITCODE preserves the native command’s exit result. Microsoft’s reg query reference .

Expected interpretation: A successful result reveals the named value and its current data. A failure requires the accompanying error text. Missing key, missing value, and access denied are different outcomes. This example is documentation-reviewed and requires a Windows lab for execution validation.

For the actual removal, use the guarded, value-specific cleanup in Module 12 from the original user’s session. Compare the current name and data with the recorded lab value first. Do not delete the parent Run key, which contains other startup entries.

Verify File Ownership #

Get-FileHash -LiteralPath 'C:\CourseLab\Artifacts\example-marker.txt' `
    -Algorithm SHA256

Get-FileHash reads file content to calculate a digest. Use this example only for a lab-owned file recorded in your manifest. The digest helps compare current content with the creation record, but a matching hash alone does not establish ownership or justify deletion. Microsoft’s Get-FileHash documentation .

Record the exact path, owner, and purpose alongside the digest. Two copies of the same lab file require two artifact records. A file containing another team’s data needs a different disposition even if its name resembles your test artifact.

Diagnose Cleanup Failures #

Access denied does not prove a live agent is holding a file. Windows distinguishes access-denied errors from sharing violations, and other conditions affect file operations. Preserve the exact native error rather than replacing it with a guessed explanation. Windows system error codes .

A remaining process requires its own ownership check. PID alone is insufficient after a long delay because identifiers are reused. Correlate image, start time, parent relationship, and the original exercise record before closing an application or asking the owner to stop a service.

Trigger removal prevents a future launch through the removed mechanism. It does not automatically end existing activity or remove every alternate launch source. The final check should cover both the startup configuration and the known running lab instance.

Observe With Process Monitor #

Microsoft’s Process Monitor demonstration supplements the file and registry investigation. Focus on process identity, operation, path, result, and event time. An unsuccessful lookup means something different from a successful write or delete. Watch on YouTube .

Process Monitor collects filesystem, registry, and process/thread activity and supports filtering. Use a bounded collection window and preserve the original capture before narrowing the analyst view. Filters help review, but an incomplete capture does not establish the absence of an earlier operation. Microsoft’s Process Monitor documentation .

Preserve Detection Evidence #

Defense-evasion testing examines whether a defined change affects prevention or detection under specified conditions. Its result belongs beside the original configuration, exact test window, and collection status. Fewer child processes or a changed command line does not establish invisibility.

Assessment cleanup should preserve customer event logs and agreed evidence. If an exercise includes a defense-evasion hypothesis, document its measured outcome and restore any authorized configuration change. Do not relabel log destruction as routine housekeeping. Revisit communication and detection comparisons for a controlled comparison method.

Review a Synthetic Cleanup #

Assume a training Run value was created for user A, and cleanup occurs later under an administrative account. The operator queries its own HKCU, receives no matching value, and marks cleanup complete. A later sign-in by user A opens the lab Notepad window again.

The failure is scope, not a mysterious registry recovery. The operator queried a different mapping and never verified the original trigger. Correct the ledger to unresolved, return to the recorded SID and view, and compare the actual lab entry with its creation record.

Expected reasoning: Successful verification names the right account, value, view, and trigger. A remaining Notepad window from before removal does not prove a new launch. Close the identified lab instance before the controlled later sign-in and correlate new process evidence.

Create a Restoration Ledger #

Build a ledger entry for the Run value and a second for any lab-owned file. Mark each as verified, unresolved, or retained by agreement. Avoid a single blanket “host clean” statement when the evidence covers only selected artifacts.

Host and artifact identifier:
Owning exercise and creation evidence:
Original state / exercise change:
Current identity, location, view, and value:
Comparison result and conflicts:
Approved restoration action and result:
Independent query and trigger verification:
Retained evidence and remaining work:
Reviewer, owner, and completion time:

Completion standard: Another reviewer should reproduce your final-state check without guessing the account or deleting additional objects. Unresolved items need an owner and next action, not an optimistic completion label.

Self-Check and Answers #

Next Steps #

Carry the restoration ledger into Module 16: Domain Privilege Escalation and Kerberos Abuse . The next lesson separates ticket requests, password exposure, and account authorization before evaluating domain impact.

Return to the Red Team Course for the complete sequence.
