Module 4: Windows Internals and Authentication

← Return to the Red Team Course #

Windows security context determines which account a process represents, which objects it is permitted to access, and which user profile it reads. This module connects registry paths, security identifiers, access tokens, and authentication. You will inspect a disposable Windows VM and produce an identity record before changing anything.

Allow 25 minutes for reading and 20 minutes for the optional lab. Complete the networking and Active Directory module first.

Learning Outcomes #

• Identify registry context: distinguish predefined keys from the loaded hives behind them.
• Read a token: separate account identity, group membership, and enabled privileges.
• Explain authentication artifacts: distinguish an NT password hash from a network challenge response and a Kerberos ticket.
• Check an observation: use account authority, SID, process context, and timestamps together.
• Create a context record: document the identity and registry view behind each lab observation.

The Registry Model #

The registry organizes operating-system and application configuration into keys and named values. A key contains subkeys and values, while each value has a name, a type, and data. A path identifies a location, but the process context and registry view determine what a particular program reads.

A hive is more specific than a top-level name displayed in Registry Editor. For example, HKEY_LOCAL_MACHINE, abbreviated HKLM, groups several machine hives. A user’s NTUSER.DAT backs much of their user configuration. Microsoft registry-hive documentation

Predefined Keys and Profiles #

HKEY_USERS, abbreviated HKU, exposes loaded user hives. It is not an inventory of every account ever used on the machine. An existing profile on disk and a currently loaded hive are different observations.

HKEY_CURRENT_USER, abbreviated HKCU, resolves through the calling process’s user context. Do not equate it with the person sitting at the keyboard. Microsoft also documents limitations around cached predefined handles and impersonation, so programs impersonating a client need the appropriate user-key API. Microsoft predefined-key documentation

Worked example: Alice’s startup entry is present in her profile. A LocalSystem service reads its own HKCU location and finds no matching value. This establishes a context mismatch, not successful removal of Alice’s entry. Record Alice’s SID and verify her specific loaded hive before drawing a conclusion.

SIDs Identify Principals #

A security identifier (SID) identifies an account or group. A display name is a label, while the SID is the identifier Windows uses in access-control decisions. Deleting and recreating an account with the same name produces a different identity. Microsoft security-identifier documentation

Local and domain accounts require an authority as well as a name. LABPC\Alice and LAB\Alice represent different accounts even if their display names match. Do not infer account origin from the apparent length of its SID. Local and domain account SIDs use comparable structures.

LAB\Alice              Domain account, down-level name
LABPC\Alice            Local account on LABPC
[email protected]      User principal name, when configured

User principal name (UPN) suffixes are configured identity names and need not match a workstation’s DNS suffix. A nonexistent prefix does not universally trigger local authentication. The logon interface, authentication provider, and requested account determine the result, including failure. Microsoft user-name formats

Processes and Access Tokens #

An access token describes a process or thread’s security context. It includes an account SID, group SIDs, privileges, and other security attributes. A process has a primary token, while a thread performing impersonation has an additional context to consider. Microsoft access-token documentation

Identity and permission are different questions. Knowing which account launched a program does not establish whether its current token authorizes a particular operation. Group attributes, privilege state, the requested operation, and the target object’s access-control entries all matter.

User Account Control (UAC) adds another distinction. In Admin Approval Mode, an administrator normally starts applications with a filtered token and elevates selected operations. An elevated process remains subject to security checks. Microsoft explanation of UAC

Supplemental Video #

Watch: Windows Access Tokens - From Authentication to Exploitation , published by Compass Security. Use the token explanation to distinguish account identity from the privileges available to a particular process. The accompanying presentations page provides the speaker’s material.

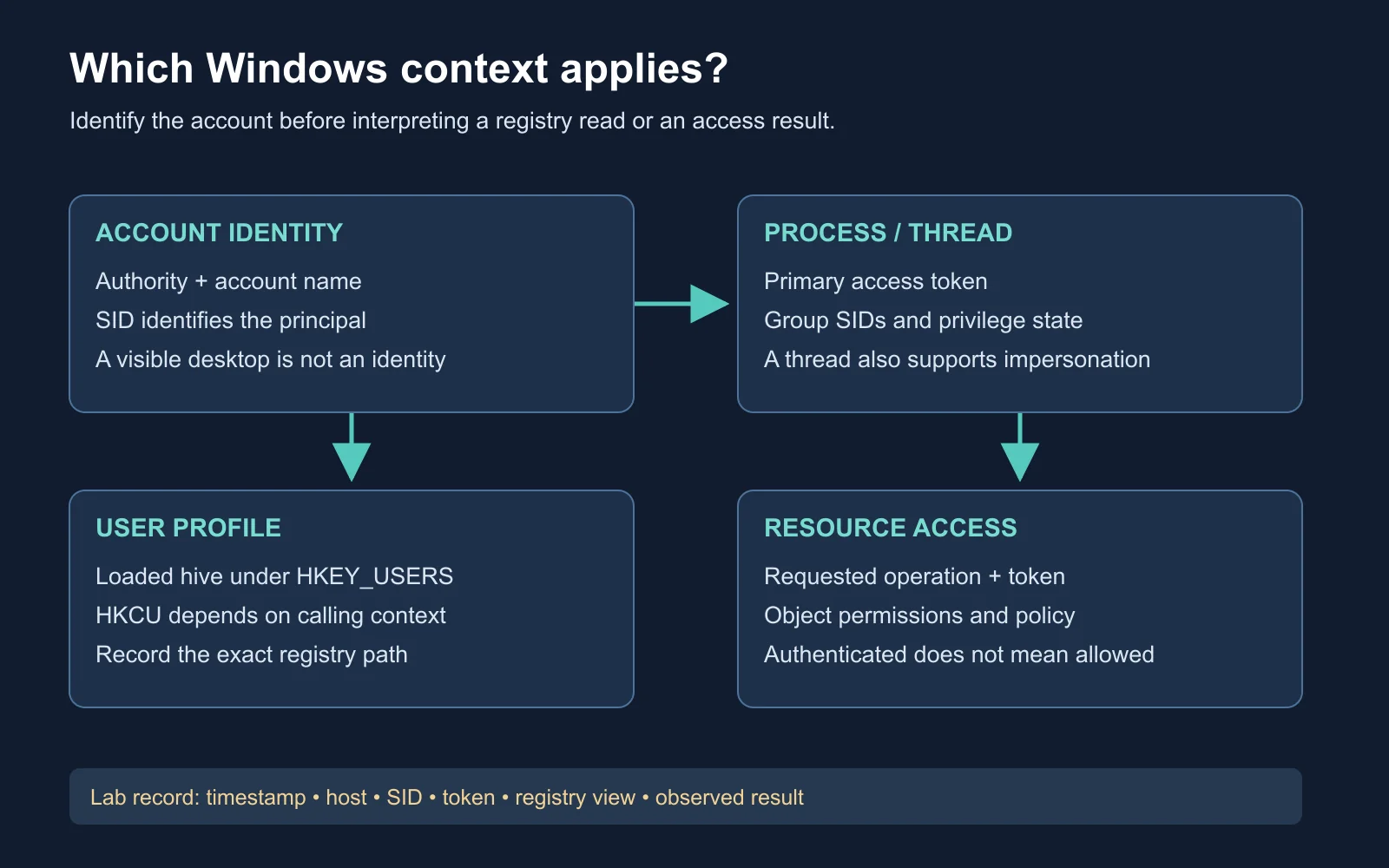

Viewing task: Draw a process with its primary token and a thread with an impersonation token. Explain why a username alone is insufficient evidence for predicting an access check. Compare your diagram with Microsoft’s access-token reference before moving to the lab.

Inspect Your Own Context #

Run these read-only commands in Command Prompt on your own Windows lab VM:

whoami /user
whoami /groups
whoami /priv
whoami /all

whoami /user reports the account and SID. /groups shows group information, /priv shows privileges, and /all combines current-token details. Save output from the ordinary shell before opening an elevated shell for comparison. Microsoft whoami reference

Expected reasoning: Under same-account elevation, the account SID should remain the same while token details differ. If the elevation prompt uses another account, compare the new account’s SID instead. An observed difference needs an explanation tied to the login path, not a blanket rule about administrator usernames.

Read the Registry Context #

Inspect the current profile without adding or removing values:

reg query "HKCU\Volatile Environment"
reg query "HKCU\Software\Microsoft\Windows\CurrentVersion\Run"
reg query HKU

reg query reads the named key. A missing Run key or an empty result is not an error in the exercise, since the profile might contain no startup entries there. Record the account, path, return message, and time instead of inventing an expected value. Microsoft reg query reference

Do not change user context mid-comparison. First relate the whoami result to the current-profile query. Then compare a second explicitly identified lab account if available. The point is to prove which identity produced the observation, not to obtain a privileged session.

Hashes, Responses, and Tickets #

An NT password hash is derived from a password and is distinct from the challenge-response messages exchanged during NTLM authentication. Two identical passwords produce identical NT hashes under the same derivation. A captured NTLMv2 response is not interchangeable with the stored NT hash. Microsoft NTLM protocol overview

Pass-the-hash describes authentication using suitable password-derived material without recovering the plaintext password. Its applicability depends on the protocol, account, policy, and target service. It does not mean any hash authenticates to any application. MITRE ATT&CK: Pass the Hash

Kerberos separates initial authentication from obtaining service tickets. Domain membership alone does not establish which protocol a particular connection used. Read the corresponding authentication evidence instead of assuming every Windows connection uses NTLM. Microsoft Kerberos overview

Place Credential Storage Correctly #

Local account material belongs to the machine’s local account database, while domain account material is maintained by Active Directory. A workstation also holds authentication state and, depending on configuration, cached domain-logon information. These are different artifacts with different uses and protections. Microsoft credential-storage explanation

Credential availability is conditional. Privilege alone does not guarantee readable plaintext passwords or every account’s secret. Credential isolation, protected processes, sign-in method, and current session state change what exists and what an administrator is permitted to inspect. The lab needs no credential dump to demonstrate the distinction.

Identity Is More Than IP #

DHCP assigns address leases and other network settings. An address often stays the same across renewals, but a later lease change is possible. An IP address is therefore an observation at a time, not a durable machine identifier.

Build a host record from hostname, account context, relevant interface addresses, and collection time. Correlate it with inventory or lease records when needed. Multiple addresses alone do not prove a host routes traffic between networks, and one address alone does not prove two observations concern the same machine.

Observation time and time zone:
Host identity and lab snapshot:
Account authority / name / SID:
Process identity and architecture:
Ordinary or elevated token:
Registry path and loaded profile:
Command and exact observed result:
Inference supported by the evidence:
Unresolved question:

Self-Check and Reasoning #

1. Same name, different SID: You recreate a deleted lab account named Alice. Should its old file permissions automatically follow the name?
2. Empty registry query: A service finds no value under its own HKCU. Has it established the user’s startup entry is absent?
3. Administrator without elevation: Why does a command fail even though its account belongs to Administrators?
4. Authentication capture: Is an NTLMv2 response the same artifact as an NT password hash?
5. Changed address: What additional evidence ties yesterday’s address to today’s workstation?

Expected answers: Recreated Alice is a new security principal. The service queried a different context, so it has not proved the user’s state. An administrator’s ordinary process often uses a filtered token.

Artifact and host checks: A challenge response and a stored password-derived secret serve different roles. Correlate host identity and timed inventory or DHCP evidence before joining the network observations.

Deliverable: Complete the identity record for two explicitly named lab contexts and explain one difference. Include actual command output and an interpretation. Label untested assumptions so the record remains useful when another reader repeats the exercise.

Next Steps #

Carry the context record forward into host operations, persistence, and cleanup. A later command is easier to interpret when you already know whose token and profile it uses. Continue with Module 5: Command and Control Operations , or return to the course hub .
