Module 5: Command and Control Operations

← Return to the Red Team Course #

Command and control (C2) connects an operator’s decisions to an agent running in a test environment. A useful operator distinguishes a submitted task from a delivered task, a completed action, and a returned result. Those states explain delays, prevent duplicate changes, and support an accurate activity record.

Allow about 18 minutes, plus time to complete the timing exercise. The exercise uses invented timestamps and requires no deployed agent.

What You Will Learn #

• Identify the client, team server, agent, listener, and redirector roles.
• Explain how polling affects task latency without treating it as a stealth guarantee.
• Calculate delivery delay from a short event timeline.
• Compare evidence from the console, network, and endpoint.
• Produce a task ledger with ownership, deadlines, and recovery decisions.

Separate the Components #

The client, team server, and Beacon serve different roles. The client is the operator’s interface, while the team server coordinates the operation and the agent performs work on an endpoint. Extension scripts loaded into one operator’s client do not automatically appear in every other client. Mandiant’s component analysis documents these boundaries. Read the component analysis .

A redirector adds another communication dependency. A request reaching the intermediary proves less than a valid task exchange reaching the agent. A listener’s display name is an organizational label, so record the actual destination, transport, owning server, and configuration revision alongside it.

The management connection and the agent channel also have separate failure modes. An operator might retain access to the console while an endpoint loses its permitted outbound route. Avoid describing both conditions as “the server is up” in a handover.

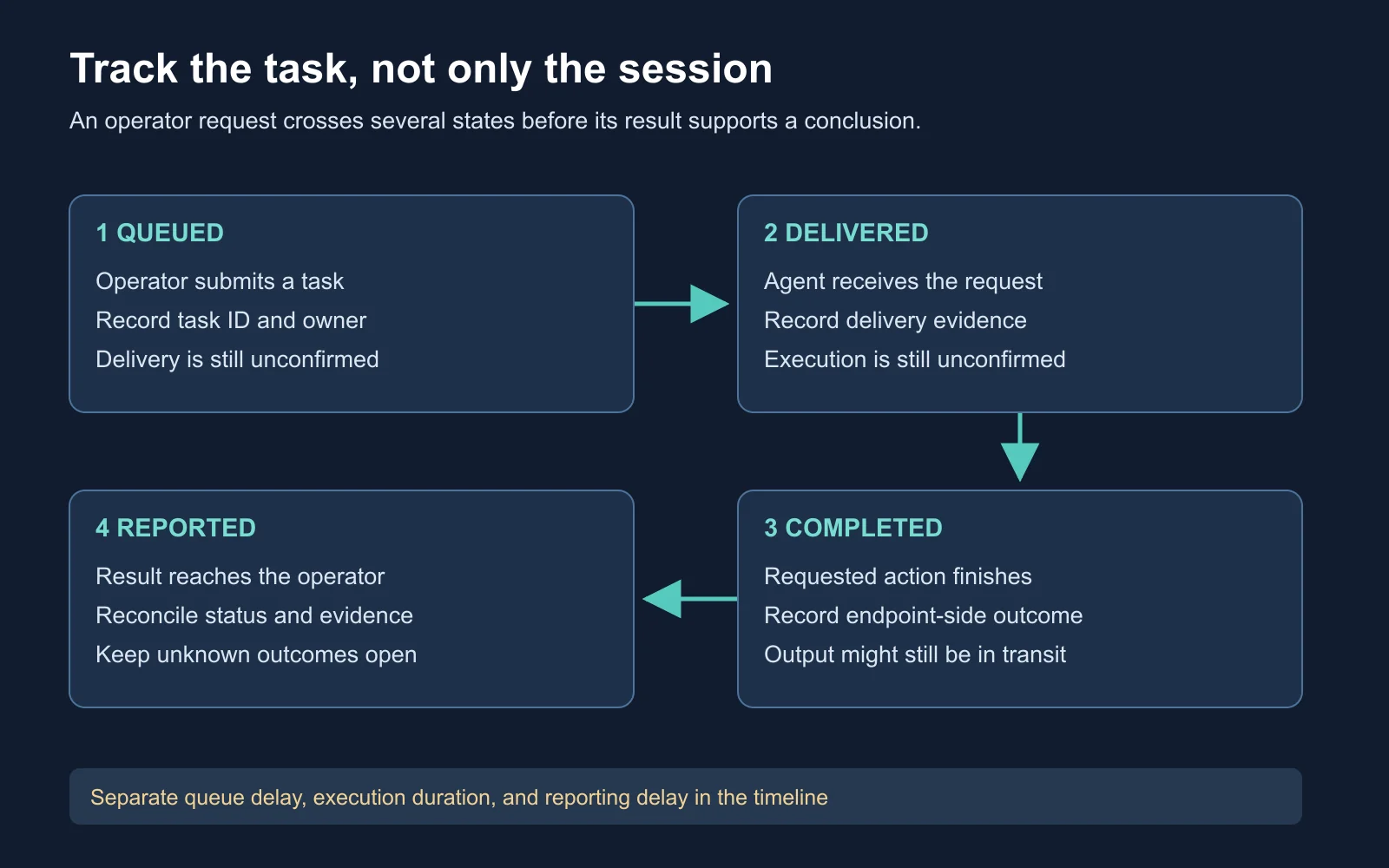

Follow a Task’s Lifecycle #

Use queued, delivered, completed, and reported as analytical states in your notes. These are course labels, not a promise about a product’s UI terminology. The visible console often exposes only part of the lifecycle, so label unavailable timestamps as unknown.

Asynchronous tasking separates submitting work from receiving its result. Cobalt Strike’s callback documentation describes responses arriving later, influenced by the agent’s sleep interval. A callback in scripting also means a function handling a later result, so distinguish the programming term from a network check-in. Read the callback documentation .

Completion evidence answers a different question from delivery evidence. A transport acknowledgment is insufficient to prove a registry read succeeded or an application accepted an operation. Preserve the task identifier and returned status so the record stays tied to the requested action.

Understand Polling Latency #

A polling interval creates a waiting period before queued work reaches an agent. For a simplified fixed schedule, a task arriving immediately after a poll waits nearly one full interval. Network delay, task duration, missed polls, and output transfer add further delay.

Asynchronous does not necessarily mean “open a new connection for every task.” Transport reuse, peer-to-peer communication, and implementation choices affect the underlying connections. Cobalt Strike supports multiple communication mechanisms, so describe the tested channel instead of assigning every agent one network pattern. Read the vendor overview .

Detection depends on the observed behavior and available sensors. Persistent connections occur in ordinary software, while repeated brief requests also create recognizable patterns. Changing the interval changes a measurement variable, not the truth value of “visible” or “invisible.”

The 30-second mean is a mathematical expectation for this model, not a measured Cobalt Strike benchmark. Once the interval varies or tasks arrive in bursts, use the observed distribution. Report the sample count and collection window with any average.

Work Through a Timeline #

Illustrative scenario: an agent polls at 10:00:00, 10:01:00, and 10:02:00. An operator submits a read-only hostname request at 10:00:10. The task reaches the endpoint at 10:01:00, completes at 10:01:02, and its result appears in the console at 10:01:05.

Calculate first: identify queue delay, execution duration, and the remaining reporting delay. Then explain why submitting the same task again at 10:00:40 would complicate the record. Assume all clocks share the same time reference for this exercise.

Expected reasoning: queue delay is 50 seconds, execution takes two seconds, and reporting adds three seconds after completion. The second submission creates another pending request before the first reaches its scheduled delivery opportunity. An absent early result does not establish a failed task.

Change one assumption: suppose the endpoint clock is 20 seconds ahead. Which durations remain trustworthy from these timestamps alone? Cross-host differences now need clock-offset information, while durations measured within a single reliable clock remain interpretable.

Handle Uncertain Results #

Unknown outcome is an operational state worth retaining. A connection loss after delivery leaves open whether the task ran, failed, or completed without returning output. Retrying a state-changing task without reconciliation risks applying the action twice.

Read-only and state-changing tasks need different retry decisions. A repeated inventory query mainly affects workload and evidence volume. A repeated configuration change requires checking current state and the expected effects of repetition before resubmission.

A deadline belongs in the task record before execution. It sets the point for review or escalation, rather than an automatic instruction to resend. For long-running work, verify the documented cancellation behavior before treating a console action as proof the endpoint stopped.

Observe Both Ends #

Endpoint evidence provides a separate view of the action. For example, configured Sysmon network events associate a connection with a process, while process events help reconstruct execution. Event availability depends on installation, configuration, filtering, and retention. Read Microsoft’s Sysmon documentation .

A missing event has several explanations. The action might not have happened, the relevant event type might be disabled, or collection might have failed. Before treating absence as a security finding, verify the observation path with a known benign control action.

Cross-source correlation needs host identity, timestamps, task identifiers, and the test window. IP addresses and process IDs alone are weak long-term join keys because their assignments change. Keep the raw evidence location with your interpretation so another reviewer has a path back to the source.

Watch the Operations Lecture #

The Cobalt Strike Archive lecture covers the operations model, team servers, logging, and reporting. Watch for the separation between managing an operation and proving a task’s outcome. Then map one demonstrated action onto the four analytical states used above.

This is a historical 2019 lecture. Use current vendor documentation for supported releases, authentication requirements, and UI details.

Watch on YouTube: Red Team Ops with Cobalt Strike (1 of 9): Operations .

Build Your Task Ledger #

Create a handover record for three hypothetical tasks: a successful inventory query, a delivered task with no returned result, and a queued task canceled before confirmed delivery. Give each task a different identifier. Include only synthetic hosts and identities.

Task ID:
Objective and approved endpoint:
Operator and session owner:
Requested action and expected output:
Queued timestamp:
Delivery evidence:
Completion evidence:
Returned status and evidence location:
Deadline and review decision:
Retry or cancellation rationale:
Remaining uncertainty:

Review your design with a second reader. They should identify which tasks are safe to close, which require reconciliation, and who owns the next decision without opening the original console. A ledger filled with “done” and “failed” is insufficient if it hides the evidence behind those labels.

Success criterion: every closed task has a supported outcome, and every unresolved task has an owner and next check. Keep timing calculations separate from claims about security-tool performance. This artifact extends the infrastructure register from Module 2 into day-to-day operation.

Check Your Understanding #

1. Components: why does a working client connection fail to prove agent reachability?
2. Timing: what assumptions support the half-interval mean waiting time?
3. Retries: why is missing output insufficient justification for repeating a configuration change?
4. Evidence: what should you verify before interpreting an absent network event?

Next Steps #

Execution location adds another dimension to task reliability. Continue to Module 6: Beacon Execution and Beacon Object Files to compare process boundaries, dependencies, and failure consequences. Return to the Red Team Course hub for the full sequence.
