Module 6: Beacon Execution and Beacon Object Files

← Return to the Red Team Course #

A Beacon Object File (BOF) extends an agent with compiled code executed inside its process. Understanding the file format is only the starting point. You also need to reason about compatibility, dependencies, input handling, runtime behavior, and the consequences of a failure.

Allow about 18 minutes, plus time to build the compatibility record. The examples are illustrative and do not require running an offensive payload.

What You Will Learn #

• Distinguish object files, executable images, scripts, and runtime code.
• Explain how execution location changes the failure boundary.
• Inspect architecture metadata without executing an object file.
• Evaluate compatibility and evidence before selecting an execution method.
• Create a test record covering valid input, invalid input, and failure handling.

Understand the File Format #

A COFF object file contains compiled sections, symbols, and relocation information. A linker ordinarily combines object files into an executable image. An object file is therefore not interchangeable with a complete Windows executable, even if both contain machine code. Read Microsoft’s PE and COFF specification .

A BOF loader supplies another route from an object file to execution. Cobalt Strike resolves the supported components and invokes code using its conventions. The extension depends on its loader’s supported APIs and runtime assumptions, rather than inheriting every facility of a normally linked application. Read the BOF documentation .

Source language is distinct from the object format. C is common, but vendor tooling also demonstrates a C++ development template. The compiled result still needs the required entry convention and compatible runtime behavior. Read the vendor’s development and debugging guide .

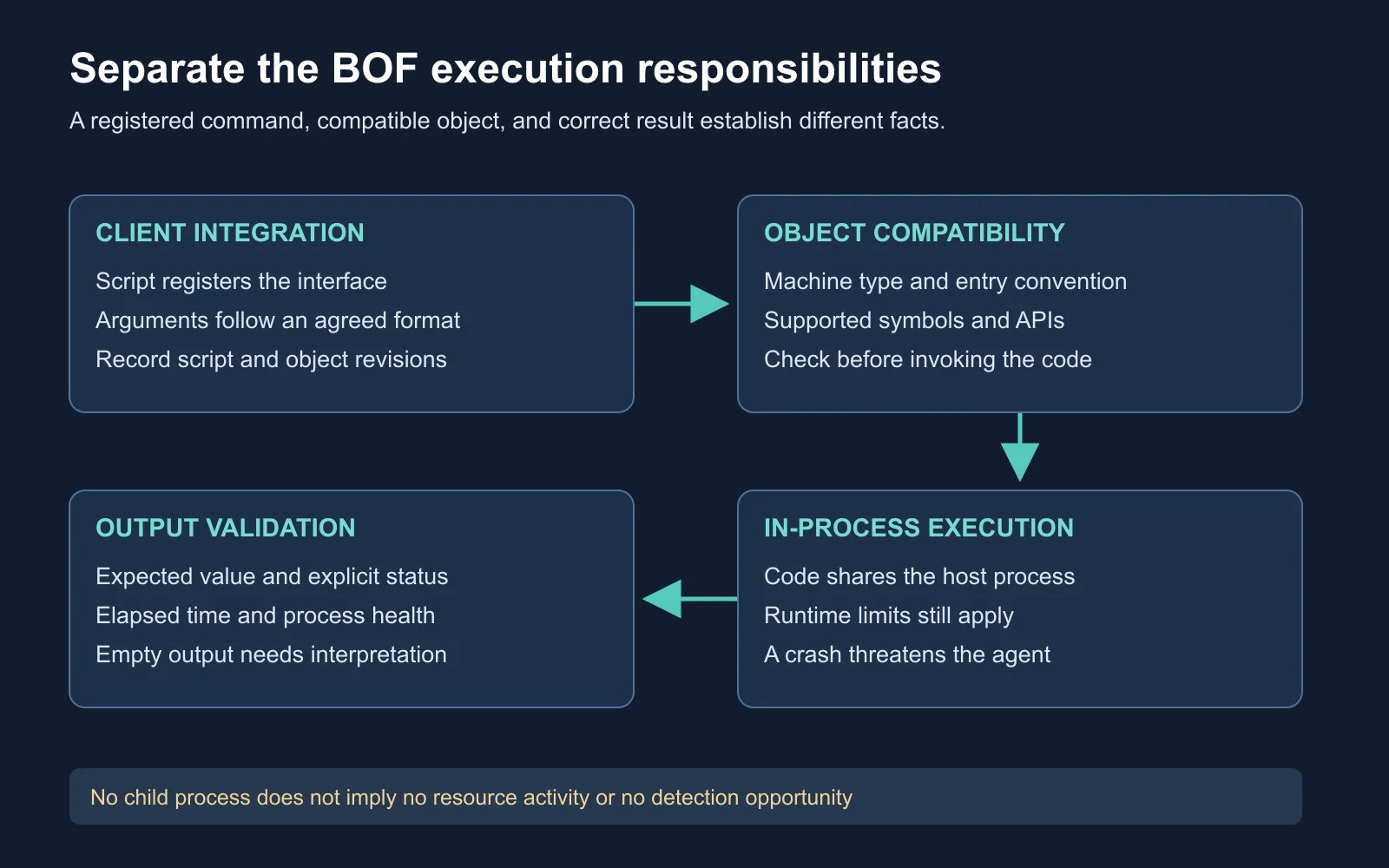

Separate Script and Endpoint #

An Aggressor script runs in the operator’s client. It often provides a named command, handles arguments, selects an object file, and submits the task. Loading a script is different from running its associated endpoint code. Read Mandiant’s component analysis .

Command registration is one integration mechanism, not a universal requirement for executing every BOF. A missing command might indicate an unloaded script, a naming conflict, a script error, or a different toolkit version. Check the integration layer before concluding the endpoint rejected the object.

Argument agreement matters across the boundary. A script expecting one string format and an object expecting another do not form a compatible pair merely because their filenames match. Record the script revision and object revision together in the test record.

Compare Execution Boundaries #

In-process code shares the host process’s resources and failure consequences. A memory error or unhandled failure in an extension threatens the running agent. The vendor’s BOF documentation explicitly describes this crash risk. Review the documented limitations .

A separate process changes the failure boundary but does not guarantee isolation from every effect. A child might modify shared files, hold network connections, or consume system resources. Judge the action’s effects as well as its location.

Telemetry also changes with the execution method. Avoid treating “no new child process” as “no observable activity.” File, registry, network, and other resource operations remain relevant observations, depending on the sensors and configuration. Review Sysmon’s event categories .

A measured comparison keeps the requested operation constant. Comparing a one-field query with a complete directory inventory mostly measures differences in workload. Use equivalent inputs and outputs before attributing differences to the execution method.

Check Architecture First #

Process architecture is the relevant boundary for code loaded into the receiving process. A 64-bit operating system also supports some 32-bit applications, so the OS label alone is insufficient. Check the object metadata and the receiving process architecture independently.

Static inspection reads an artifact without invoking its entry point. On a Windows development machine with the Visual Studio tools installed, use the Developer Command Prompt to inspect a benign object supplied for your lab. The /headers option displays file and section-header information. Read Microsoft’s DUMPBIN header reference .

dumpbin /headers lab-query.obj

Read the machine field and record it alongside the filename and hash. Microsoft’s COFF specification identifies values such as I386 for x86 and AMD64 for x64. This check establishes the declared machine target, not whether every symbol, API call, or argument is compatible.

Account for Runtime Limits #

The documented inline BOF model expects short, single-threaded work. Its execution blocks other Beacon functionality while it runs, and the standard loader does not supply a normal C runtime library. A function available in an ordinary C application is not automatically available through this interface. Read the runtime limitations .

Other job mechanisms have different lifecycles. Cobalt Strike separately documents background tasks running in another process. Do not turn a limitation of the inline BOF model into a claim about every task supported by the platform. Read the job-control documentation .

Version records prevent ambiguous conclusions. Keep the loader release, compiler settings, object revision, script revision, and operating-system build with a test result. A successful run establishes compatibility for the tested combination, not every environment using the same product name.

Work a Compatibility Case #

Illustrative scenario: a training VM runs a 64-bit OS, but its exercise loader runs in a 32-bit process. You receive an x64 object and a script from a different release. The script loads successfully and exposes a command.

Your task is to identify the evidence supporting execution and the evidence still missing. Decide whether loading the script proves the object is compatible. Then propose the smallest set of checks needed before a benign inventory test.

Expected reasoning: stop before execution because the object and receiving process do not match. Obtain a reviewed compatible build, then verify the script’s expected arguments against the object interface. Successful client registration does not test endpoint loading.

A second case changes the object to a compatible architecture but produces empty output for a query known to have one result. Architecture is no longer the only issue. Investigate argument handling, permissions, status reporting, and output formatting before claiming the queried item is absent.

Watch the Vendor Demonstration #

The Cobalt Strike Archive demonstration introduces the BOF feature through a small example. Watch how client-side tasking relates to endpoint execution and returned output. Note which parts of the workflow would need separate compatibility evidence in your own record.

The video demonstrates the feature introduced in Cobalt Strike 4.1. Pair it with the current documentation rather than assuming every UI detail still matches.

Watch on YouTube: Beacon Object Files - Luser Demo .

Design a Benign Test #

Choose a small query with a known expected result in a disposable training environment. Suitable examples include reporting the test process’s own architecture or returning a fixed input string. Avoid mixing the compatibility test with a privilege change, network sweep, or persistence action.

Test the input boundary as well as the successful case. Specify expected behavior for missing input, malformed input, and a valid empty result. Vendor debugging guidance includes a standalone development approach, which helps separate basic correctness from agent-channel problems. Read the development guide .

Test identifier:
Question and expected result:
Loader and process architecture:
Object hash and source revision:
Compiler and build settings:
Client script revision:
Input case:
Returned status and output:
Elapsed time and process health:
Observed side effects:
Evidence location and unresolved questions:

Evaluate the result against the expected output, explicit status, elapsed time, and process health. A test which returns the right string but leaves the test process unresponsive has not passed. A failure with a clear error and an intact process still teaches something useful about error handling.

Your deliverable is a compatibility record containing at least three input cases and one justified decision about execution location. Explain the trade-off in terms of correctness, consequences, and observability. Avoid unsupported claims about which method is universally “quietest.”

Check Your Understanding #

1. Format: why is a COFF object different from a complete executable image?
2. Architecture: which architecture matters when loading an extension?
3. Integration: what does successful script loading establish?
4. Visibility: which observations remain useful without a new child process?

Next Steps #

Communication behavior is another independent dimension of an operation. Continue to Module 7: Malleable C2 and Communication Evasion to distinguish a valid profile from a supported detection claim. Return to the Red Team Course hub for the full sequence.
