USB Standards and Ports: A User’s Guide #

USB standards and ports play a crucial role in connecting various devices to a computer or other electronic devices. Understanding the different USB standards and ports is essential for ensuring compatibility and maximizing data transfer speeds. This article provides an overview of USB standards and ports, including their evolution, features, and benefits. It also explores the advancements in USB technology, such as USB Type-C and USB 4.0. Whether you are a tech enthusiast or a casual user, this user’s guide will help you navigate the world of USB standards and ports with ease.

Key Takeaways #

• USB standards and ports are essential for connecting devices to computers and other electronic devices.
• USB standards have evolved over time, with each new version offering improved features and performance.
• USB 3.0 and 3.1 introduced the SuperSpeed feature, significantly increasing data transfer speeds.
• USB Type-C is a universal connector that offers various advantages, including reversible plug orientation and support for multiple protocols.
• USB 4.0 is the latest USB standard, providing even faster data transfer speeds and improved compatibility.

Introduction to USB Standards and Ports #

What is USB? #

USB stands for Universal Serial Bus. It is a standard for connecting devices to a computer. USB allows for the transfer of data, power, and audio/video signals between devices. It has become the most widely used interface for connecting peripherals to computers.

Evolution of USB Standards #

USB standards have evolved over time to meet the increasing demands of data transfer and device connectivity. The advancements in USB technology have led to faster speeds, improved power delivery, and enhanced functionality. Here are some key highlights of the evolution of USB standards:

• USB 1.0: Introduced in 1996, USB 1.0 provided a data transfer rate of 1.5 Mbps. It was primarily used for connecting peripherals such as keyboards, mice, and printers.
• USB 2.0: Released in 2000, USB 2.0 offered a significant improvement in speed with a maximum data transfer rate of 480 Mbps. It became the standard for most devices and allowed for faster file transfers and multimedia streaming.
• USB 3.0: Introduced in 2008, USB 3.0 brought a major leap in performance with a data transfer rate of up to 5 Gbps. It introduced the concept of SuperSpeed, enabling faster backups, file transfers, and HD video streaming.
• USB 3.1: Released in 2013, USB 3.1 further enhanced the capabilities of USB 3.0 with a data transfer rate of up to 10 Gbps. It also introduced the USB Type-C connector, which offered reversible plug orientation and increased power delivery.
• USB 4.0: The latest USB standard, USB 4.0, was announced in 2019. It builds upon the capabilities of USB 3.2 and offers even faster speeds, improved power delivery, and support for multiple data and display protocols.

With each new USB standard, users can expect faster transfer speeds, increased power delivery, and improved compatibility with a wide range of devices.

Types of USB Ports #

USB ports come in various types, each with its own unique characteristics and capabilities. Here are the different types of USB ports:

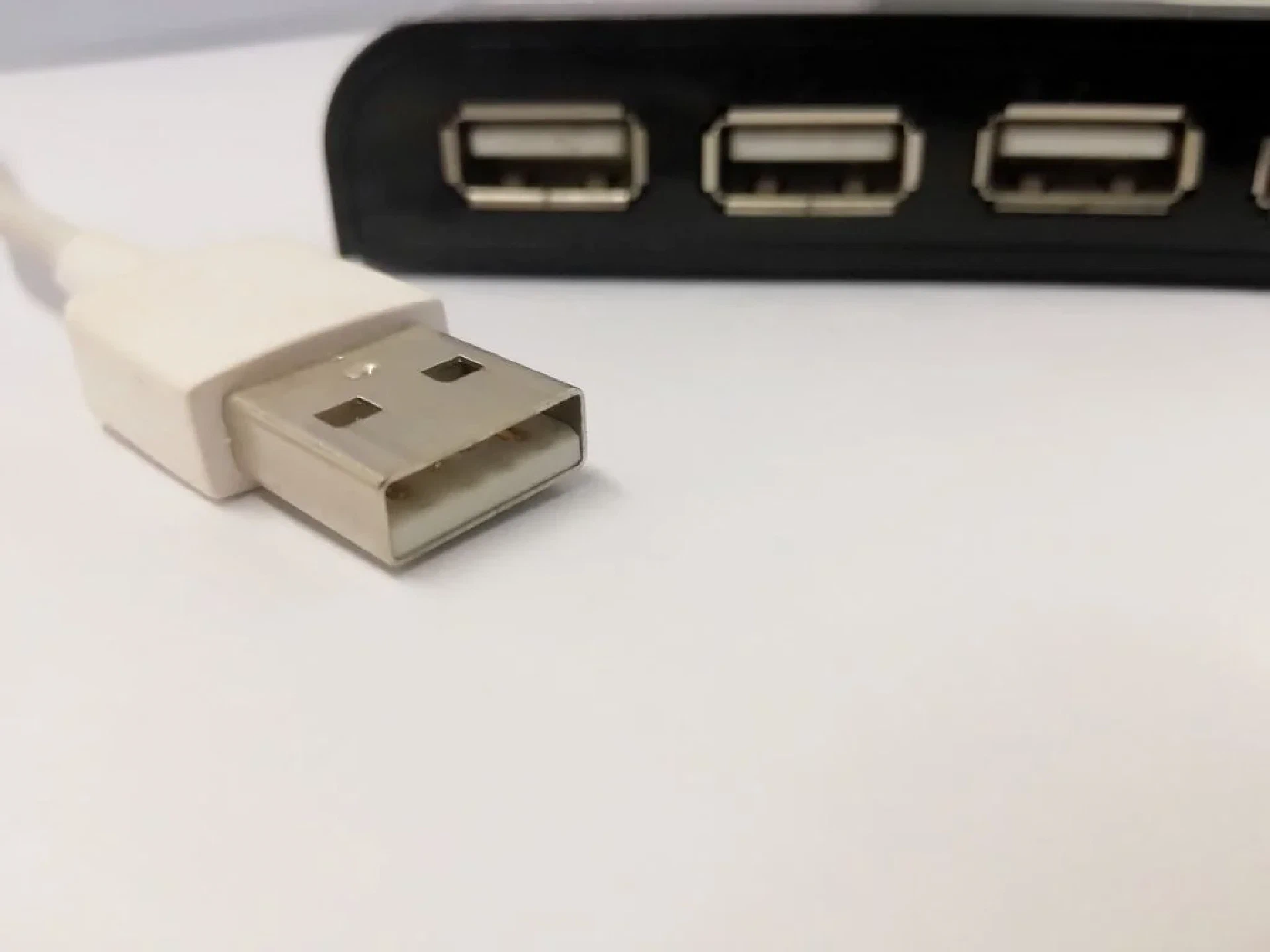

1. USB Type-A: This is the most common type of USB port found on computers and other devices. It has a rectangular shape and is used for connecting peripherals such as keyboards, mice, and printers.

2. USB Type-B: This type of USB port is typically found on printers, scanners, and other peripheral devices. It has a square shape with beveled corners and is used for connecting these devices to a computer.

3. USB Type-C: This is the latest and most versatile type of USB port. It has a small, reversible connector that can be plugged in either way. USB Type-C ports support faster data transfer speeds and can also be used for charging devices.

4. Mini USB: This type of USB port is smaller than the standard USB Type-A port and is commonly used for connecting digital cameras, MP3 players, and other portable devices.

5. Micro USB: Even smaller than the Mini USB, the Micro USB port is commonly found on smartphones, tablets, and other mobile devices. It is used for charging and data transfer.

It’s important to note that not all devices support all types of USB ports. When connecting devices, make sure to check the compatibility of the ports to ensure proper functionality.

USB 1.0 and 2.0: The Early Days #

Overview of USB 1.0 #

USB 1.0 was the first version of the Universal Serial Bus (USB) standard, introduced in 1996. It provided a significant improvement over previous connection methods, such as serial and parallel ports. USB 1.0 offered a standardized way to connect peripherals to computers, allowing for easy plug-and-play functionality.

Key features and limitations of USB 1.0:

• Data transfer rate: USB 1.0 supported a maximum data transfer rate of 12 Mbps (megabits per second), which was considered fast at the time.
• Power delivery: USB 1.0 provided a maximum power delivery of 500 mA (milliamperes) at 5 volts, allowing devices to be powered directly from the USB port.
• Cable length: USB 1.0 had a maximum cable length of 5 meters, which limited the distance between the computer and connected devices.

Despite its limitations, USB 1.0 laid the foundation for future USB standards and revolutionized the way peripherals were connected to computers.

Features and Limitations of USB 1.0 #

USB 1.0 introduced several key features and limitations that shaped the early days of USB technology. Here are some important points to consider:

• Data Transfer Speed: USB 1.0 had a maximum data transfer rate of 12 Mbps, which was significantly faster than the previous serial and parallel ports.
• Power Delivery: USB 1.0 provided a power delivery capability of 5V and 500mA, allowing devices to be powered directly from the USB port.
• Device Limitations: USB 1.0 had a maximum device limit of 127 devices per USB controller, which was sufficient for most personal computer setups.
• Cable Length: USB 1.0 supported a maximum cable length of 5 meters, which limited the flexibility of device placement.

While USB 1.0 brought significant improvements over previous technologies, it also had some limitations that were addressed in subsequent USB standards.

Introduction to USB 2.0 #

USB 2.0 is an improved version of the original USB 1.0 standard, offering faster data transfer speeds and enhanced functionality. It introduced several key features and advantages over its predecessor:

• Higher Data Transfer Rates: USB 2.0 supports data transfer rates of up to 480 Mbps, which is 40 times faster than USB 1.0.
• Backward Compatibility: USB 2.0 devices are backward compatible with USB 1.0 ports, allowing users to connect older devices to newer computers.
• Plug-and-Play: USB 2.0 introduced the concept of plug-and-play, making it easier to connect and use devices without the need for complex installation processes.
• Increased Power Output: USB 2.0 ports provide more power to connected devices, allowing for faster charging and the use of power-hungry peripherals.

USB 2.0 played a crucial role in the widespread adoption of USB technology and laid the foundation for future USB standards.

Improvements and Advantages of USB 2.0 #

USB 2.0 brought significant improvements and advantages over its predecessor, USB 1.0. With faster data transfer speeds and enhanced power delivery capabilities, USB 2.0 revolutionized the way we connect and interact with devices.

One of the key advantages of USB 2.0 is its increased data transfer rate. It offers a maximum transfer speed of 480 Mbps, which is 40 times faster than USB 1.0. This high-speed data transfer capability allows for quick and efficient file transfers, making it ideal for tasks such as backing up large files or transferring multimedia content.

In addition to faster data transfer, USB 2.0 also introduced improved power delivery. It provides up to 500 mA of power, allowing devices to be charged or powered directly through the USB connection. This eliminates the need for separate power adapters and simplifies the overall setup.

To summarize the improvements and advantages of USB 2.0:

• Increased data transfer rate of 480 Mbps, 40 times faster than USB 1.0.
• Improved power delivery with up to 500 mA of power.

USB 2.0 set the stage for future USB standards by addressing the limitations of USB 1.0 and providing faster data transfer speeds and improved power delivery. It remains widely used today, although newer USB standards have since been introduced.

USB 3.0 and 3.1: SuperSpeed and Beyond #

Introduction to USB 3.0 #

USB 3.0, also known as SuperSpeed USB, is the third major version of the Universal Serial Bus (USB) standard. It offers significant improvements over its predecessors, USB 1.0 and USB 2.0, in terms of data transfer speed and power delivery.

• USB 3.0 provides a tenfold increase in data transfer rates compared to USB 2.0, with speeds of up to 5 gigabits per second (Gbps).
• This increased bandwidth allows for faster file transfers, quicker backups, and smoother streaming of high-definition content.
• USB 3.0 is backward compatible with USB 2.0 devices, meaning you can still use your existing USB 2.0 peripherals with a USB 3.0 port.
• However, to fully take advantage of the faster speeds, both the device and the port need to be USB 3.0 compatible.

USB 3.0 also introduces new power management features:

• It provides increased power delivery of up to 900 milliamps (mA), compared to the 500 mA limit of USB 2.0.
• This allows for faster charging of devices and the ability to power more demanding peripherals.

Overall, USB 3.0 offers a significant upgrade in terms of speed and power delivery, making it an essential feature for modern devices and peripherals.

Features and Benefits of USB 3.0 #

USB 3.0 offers several key features and benefits that make it a significant improvement over previous USB standards:

• SuperSpeed data transfer: USB 3.0 provides a dramatic increase in data transfer speeds, with a theoretical maximum transfer rate of up to 5 gigabits per second (Gbps). This is ten times faster than USB 2.0, allowing for quicker file transfers and faster access to external storage devices.

• Backward compatibility: USB 3.0 is designed to be backward compatible with USB 2.0 and USB 1.1 devices. This means that you can still use your existing USB devices with a USB 3.0 port, although you won’t be able to take advantage of the higher transfer speeds.

• Improved power management: USB 3.0 introduces better power management capabilities, allowing devices to draw power more efficiently. This can result in longer battery life for portable devices and reduced power consumption for desktop computers.

Tip: To fully utilize the benefits of USB 3.0, make sure to use USB 3.0 cables and devices that support the standard.

Overview of USB 3.1 #

USB 3.1 is an upgraded version of USB 3.0, offering even faster data transfer speeds and improved performance. It introduces several enhancements and features that make it a significant improvement over its predecessor.

• USB 3.1 supports data transfer rates of up to 10 Gbps, which is twice as fast as USB 3.0. This means that transferring large files and backing up data can be done much more quickly.
• One of the key features of USB 3.1 is its increased power delivery capability. It can provide up to 100W of power, allowing for faster charging of devices and the possibility of powering larger peripherals.
• USB 3.1 also introduces the reversible USB Type-C connector, which is smaller and more versatile than previous USB connectors. This means that you no longer have to worry about plugging the cable in the right way, as it can be inserted either way.

USB 3.1 is backward compatible with USB 3.0 and USB 2.0, so you can still use your existing devices with the new standard. However, to take full advantage of the faster speeds and other features, you will need devices that support USB 3.1.

Enhancements and Performance of USB 3.1 #

USB 3.1 brings several enhancements and improvements over its predecessor, USB 3.0. With its increased data transfer speeds and power delivery capabilities, USB 3.1 offers a superior user experience. Here are some key features and benefits of USB 3.1:

• SuperSpeed+: USB 3.1 introduces the SuperSpeed+ mode, which supports data transfer rates of up to 10 Gbps. This is twice the speed of USB 3.0, allowing for faster file transfers and improved performance.
• Power Delivery: USB 3.1 also includes enhanced power delivery capabilities, enabling devices to deliver more power to connected peripherals. This is especially useful for charging devices quickly and efficiently.
• Backward Compatibility: USB 3.1 is backward compatible with USB 3.0 and USB 2.0, ensuring that older devices can still be used with newer USB 3.1 ports.

USB 3.1 is a significant improvement over previous USB standards, providing faster speeds, increased power delivery, and backward compatibility. It is an ideal choice for users who require high-speed data transfer and efficient charging capabilities.

USB Type-C: The Universal Connector #

What is USB Type-C? #

USB Type-C is a versatile and powerful connector that has gained widespread adoption in recent years. It offers several advantages over previous USB standards, making it the go-to choice for many devices and peripherals.

Reversible Design: One of the key features of USB Type-C is its reversible design, which means that the connector can be inserted into the port in any orientation. This eliminates the frustration of trying to plug in a USB cable the wrong way.

Increased Data Transfer Speeds: USB Type-C supports the USB 3.1 standard, which offers significantly faster data transfer speeds compared to previous USB standards. This allows for quick and efficient transfer of large files and high-resolution media.

Power Delivery: USB Type-C also supports power delivery, which means that it can deliver higher power levels to charge devices faster. It can also be used to power devices such as laptops and monitors.

Compatibility: USB Type-C is compatible with a wide range of devices, including smartphones, tablets, laptops, and peripherals. It has become the standard connector for many new devices, ensuring compatibility and ease of use.

To summarize, USB Type-C is a versatile and powerful connector that offers a reversible design, increased data transfer speeds, power delivery capabilities, and wide compatibility with various devices.

Advantages and Features of USB Type-C #

USB Type-C offers several advantages and features that make it a versatile and convenient connector for various devices:

• Reversible Design: One of the key advantages of USB Type-C is its reversible design, which means you can plug it in either way without worrying about the orientation. This eliminates the frustration of trying to insert the USB cable correctly.

• Increased Data Transfer Speed: USB Type-C supports the USB 3.1 standard, which offers significantly faster data transfer speeds compared to previous USB standards. This allows for quick and efficient transfer of large files and reduces waiting time.

• Power Delivery: USB Type-C supports Power Delivery technology, which enables faster charging of devices. With USB Type-C, you can charge your devices more quickly and efficiently.

• Versatility: USB Type-C is a universal connector that can be used with various devices, including laptops, smartphones, tablets, and peripherals. This eliminates the need for multiple cables and adapters.

• Audio and Video Support: USB Type-C supports audio and video signals, allowing you to connect your devices to external displays and speakers without the need for additional ports or cables.

Tip: When purchasing USB Type-C cables or adapters, make sure they are certified to ensure compatibility and safety.

Compatibility and Adoption of USB Type-C #

USB Type-C has gained widespread popularity and adoption due to its numerous advantages and compatibility with various devices. Its compact size and reversible design make it convenient for users. One of the key advantages of USB Type-C is its ability to support multiple protocols, including USB 3.1, Thunderbolt 3, and DisplayPort. This versatility allows users to connect a wide range of devices, such as external monitors, storage devices, and smartphones, using a single USB Type-C port.

In addition, USB Type-C offers faster data transfer speeds compared to previous USB standards. With USB 3.1, users can enjoy SuperSpeed data transfer rates of up to 10 Gbps. This means transferring large files or backing up data can be done quickly and efficiently. Moreover, USB Type-C supports fast charging, enabling devices to charge at higher power levels, reducing charging time.

To ensure compatibility, many manufacturers have embraced USB Type-C as the standard port for their devices. Major tech companies such as Apple, Google, and Microsoft have incorporated USB Type-C ports in their laptops, tablets, and smartphones. This widespread adoption has led to an increase in the availability of USB Type-C accessories and peripherals in the market.

In conclusion, USB Type-C’s compatibility with multiple protocols, faster data transfer speeds, and widespread adoption by major tech companies make it an ideal choice for users seeking a versatile and future-proof port.

USB 4.0: The Next Generation #

Introduction to USB 4.0 #

USB 4.0 is the next generation of USB standards, offering significant improvements and advancements over previous versions. It introduces several key features that enhance data transfer speeds, power delivery capabilities, and overall performance.

USB 4.0 brings faster data transfer speeds, with a maximum throughput of 40 Gbps. This is double the speed of USB 3.1 and allows for quicker file transfers and more efficient data streaming.

One of the notable enhancements in USB 4.0 is the support for multiple simultaneous data and display protocols. This means that USB 4.0 can handle different types of data streams, such as video, audio, and data, simultaneously without any loss in performance.

USB 4.0 also introduces enhanced power delivery capabilities, allowing for faster charging of devices and the ability to power larger peripherals. With USB 4.0, you can expect faster charging times and more efficient power management.

In addition to these improvements, USB 4.0 is designed to be backwards compatible with previous USB standards. This means that USB 4.0 devices can be used with older USB ports, although the full benefits of USB 4.0 may not be realized.

Overall, USB 4.0 represents a significant leap forward in USB technology, offering faster speeds, improved power delivery, and enhanced versatility. It is set to become the new standard for high-speed data transfer and connectivity.

Key Features and Improvements of USB 4.0 #

USB 4.0 introduces several key features and improvements that enhance the performance and versatility of USB technology.

• Increased Data Transfer Speed: USB 4.0 supports a maximum data transfer rate of 40 Gbps, doubling the speed of USB 3.1.
• Backward Compatibility: USB 4.0 is backward compatible with previous USB standards, allowing users to connect their existing devices to USB 4.0 ports.
• Enhanced Power Delivery: USB 4.0 provides improved power delivery capabilities, enabling faster charging of devices and support for higher power requirements.
• Multiple Device Support: USB 4.0 introduces the ability to connect multiple devices to a single USB port, thanks to its enhanced bandwidth and improved data transfer capabilities.
• Alternate Modes: USB 4.0 supports alternate modes, allowing the same USB-C port to be used for other protocols such as DisplayPort or Thunderbolt.

These advancements make USB 4.0 an ideal choice for users seeking faster data transfer speeds, increased power delivery, and improved connectivity options.

Comparison with Previous USB Standards #

USB 4.0 is the next generation of USB standards, building upon the advancements of previous versions. It offers several key features and improvements that make it a significant upgrade.

Key Features and Improvements of USB 4.0:

• Increased Data Transfer Speed: USB 4.0 supports data transfer speeds of up to 40 Gbps, which is twice as fast as USB 3.1.
• Enhanced Power Delivery: USB 4.0 provides improved power delivery capabilities, allowing for faster charging of devices and support for higher power requirements.
• Backward Compatibility: USB 4.0 is backward compatible with previous USB standards, ensuring that older devices can still be used with the new standard.

Comparison with Previous USB Standards:

USB 4.0 offers significant improvements in terms of data transfer speed and power delivery compared to previous USB standards. It also maintains backward compatibility, ensuring that users can still connect their older devices to USB 4.0 ports.

Conclusion #

In conclusion, USB standards and ports have evolved significantly over the years, providing users with faster and more versatile connectivity options. From the early days of USB 1.0 and 2.0 with their limitations and slower speeds, to the introduction of USB 3.0 and 3.1 with their SuperSpeed capabilities, and the universal connector USB Type-C, the USB technology has revolutionized the way we connect and transfer data. With the upcoming USB 4.0, users can expect even higher speeds and improved performance. USB has become an essential part of our daily lives, powering various devices and enabling seamless data transfer. As technology continues to advance, it is likely that USB standards will continue to evolve, providing users with even more efficient and convenient connectivity options. USB truly is a remarkable technology that has shaped the way we interact with our devices.

Frequently Asked Questions #

What is the difference between USB 2.0 and USB 3.0? #

USB 2.0 has a maximum data transfer rate of 480 Mbps, while USB 3.0 has a maximum data transfer rate of 5 Gbps. USB 3.0 also has improved power management and is backward compatible with USB 2.0 devices.

Can I use a USB 3.0 device with a USB 2.0 port? #

Yes, USB 3.0 devices are backward compatible with USB 2.0 ports. However, the device will only operate at USB 2.0 speeds.

What is USB Type-C? #

USB Type-C is a small, reversible connector that supports data transfer, video output, and power delivery. It is becoming the new standard for USB ports.

Are USB Type-C cables compatible with older USB ports? #

USB Type-C cables are compatible with older USB ports using adapters or converters. However, not all USB Type-C features may be supported.

What is the maximum length of a USB cable? #

The maximum length of a USB cable is 5 meters for USB 2.0 and 3 meters for USB 3.0. Longer cables may result in signal loss and reduced performance.

Can I charge my laptop using a USB port? #

Yes, many laptops support charging through USB ports. However, the charging speed may be slower compared to using a dedicated charger.
