SenseCAP M1 Raspberry Pi Shield: Pinout and LoRaWAN Reuse

The SenseCAP M1 shield is useful LoRaWAN gateway hardware, but its wiring deserves more scrutiny than a generic Raspberry Pi HAT tutorial provides. This guide expands Clockwork Bird’s 2023 investigation with manufacturer documentation, upstream driver inspection, and current GPIO guidance. You will identify the hardware, separate established facts from incomplete pinout evidence, and produce a repeatable bring-up record.

Scope: This is a documentation-based hardware guide. The commands and board mappings have not been tested on a physical M1 for this article.

Key Takeaways #

• Identify both boards: The M1 carrier and its removable concentrator have separate model and revision information.
• Audit reset scripts: CoreCell defaults conflict with signals in the published M1 pinout.
• Check the OS interfaces: SPI device files, GPIO numbering, and GPIO tool versions answer different questions.
• Preserve secure-element provisioning: Reading device information differs from configuring or generating keys.
• Prove the whole path: A detected concentrator does not establish successful sensor delivery.

Before You Begin #

Difficulty: intermediate. Budget roughly one to two hours for inventory, OS preparation, and documentation checks. Electrical verification, driver adaptation, and network-server deployment add separate work, especially with an unfamiliar board revision.

Photograph both sides of your unpowered assembly before removing anything. Record connector orientation, screws, spacers, and antenna routing. Keep the original card and configuration available until the replacement installation passes your acceptance checks.

Identify the Three Layers #

The complete M1, its carrier shield, and its concentrator are different components. Seeed documents the assembled hotspot as a Raspberry Pi 4 with either a WM1302/SX1302 or WM1303/SX1303 concentrator. A listing titled “SenseCAP M1 shield” does not establish which of those parts accompanies the carrier. Seeed Studio’s M1 overview

The carrier routes power and peripheral signals between the Pi and module. The concentrator handles radio reception and transmission. A packet forwarder runs on the host and exchanges received radio packets and scheduled downlinks with a server. Semtech’s SX1302 HAL overview

For a practical example, a shelf-temperature sensor sends an uplink over radio. The concentrator receives it, the host forwards it, and the network/application services process it. A successful Linux boot proves only the host portion of this chain.

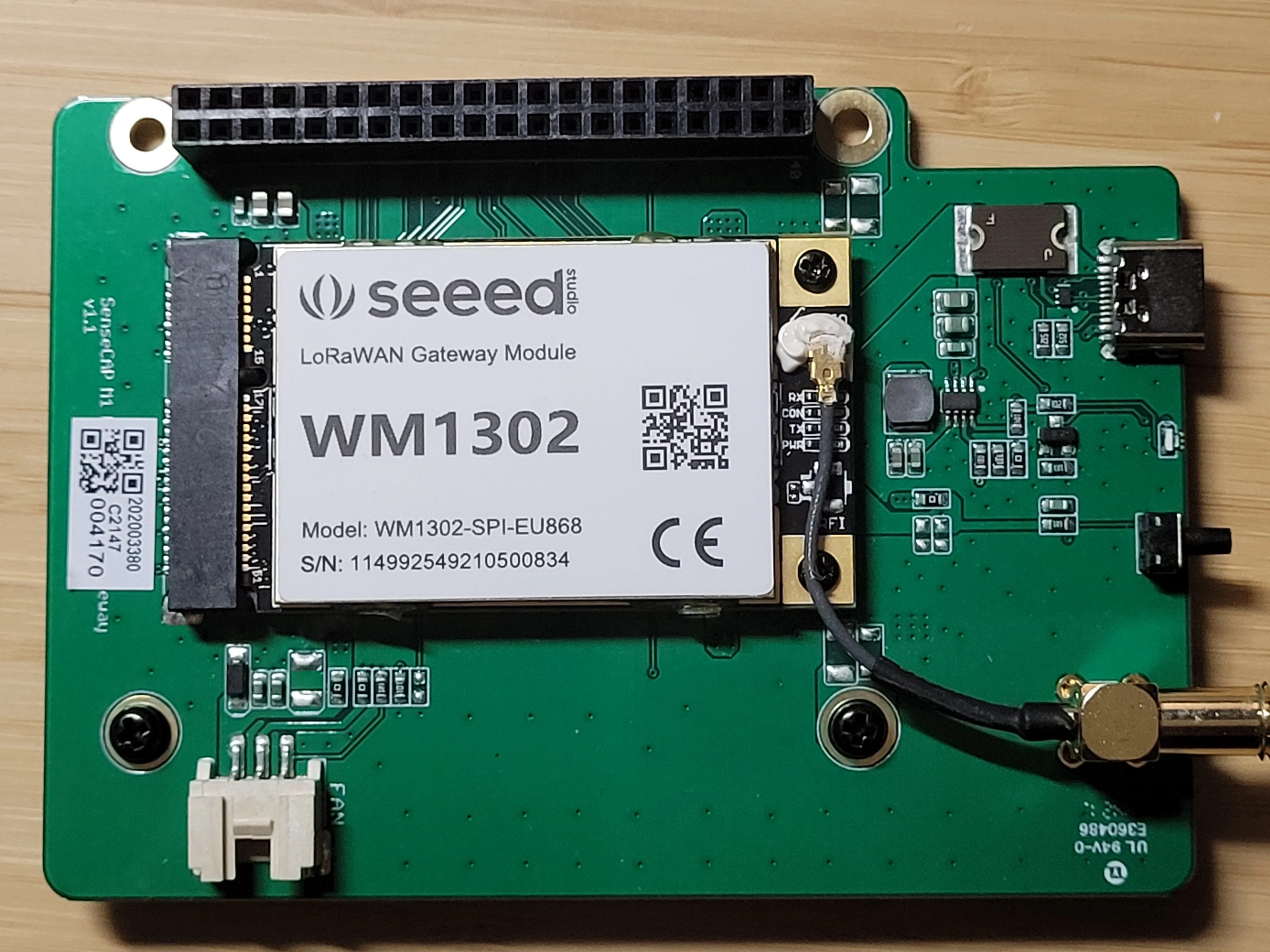

Clockwork Bird’s photograph shows an M1 v1.1 carrier with a module explicitly labeled WM1302-SPI-EU868. Use the photograph to locate the labels on your own hardware. Its serial numbers identify the photographed equipment, not configuration values for another gateway.

Power and Radio Connections #

Treat the M1 USB-C connector as a power input. The manufacturer specifies DC 5 V, 3 A for the complete gateway and identifies USB-C as its power-supply interface. Calling it a charging port suggests a battery function absent from those specifications. SenseCAP M1 specifications

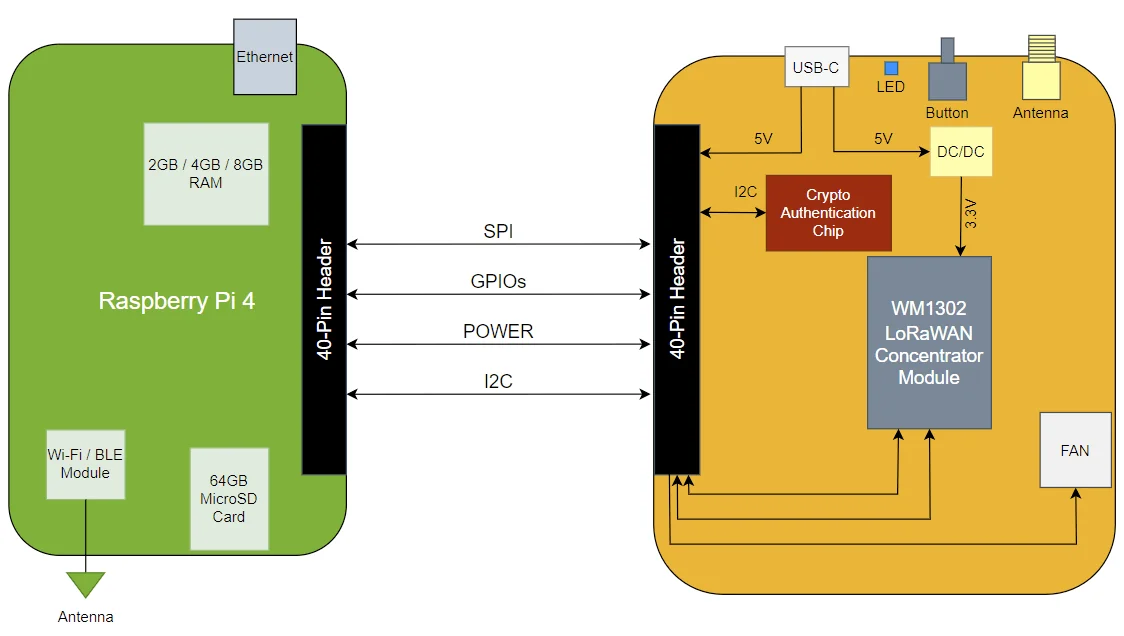

The vendor block diagram separates the 5 V supply from the module’s regulated 3.3 V rail. This distinction matters during troubleshooting: a running Pi and an unpowered concentrator are separate possibilities. Do not inject 5 V into a signal pin or assume two power inputs are isolated from each other.

SPI and USB module variants require different host connections. Seeed’s WM1302 documentation describes direct SPI access for its SPI model and an STM32L4 USB bridge for its USB model. The mini-PCIe shape describes the module’s form factor, while the documented electrical interfaces are SPI or USB. A matching laptop socket is insufficient evidence of compatibility. Seeed’s WM1302 documentation

Before powering the assembly, seat the module with power disconnected and attach a suitable antenna. Match the RF hardware, antenna, and intended network plan. Changing a configuration filename does not replace the module’s RF components, and the M1 power socket does not prove support for a USB concentrator variant.

Read the Pinout Carefully #

Use BCM GPIO numbers and physical header numbers as separate columns in your notes. For example, BCM GPIO17 sits at physical pin 11 on the Pi header. The module edge connector introduces a third numbering system, so its reset pin number is not a Raspberry Pi GPIO number.

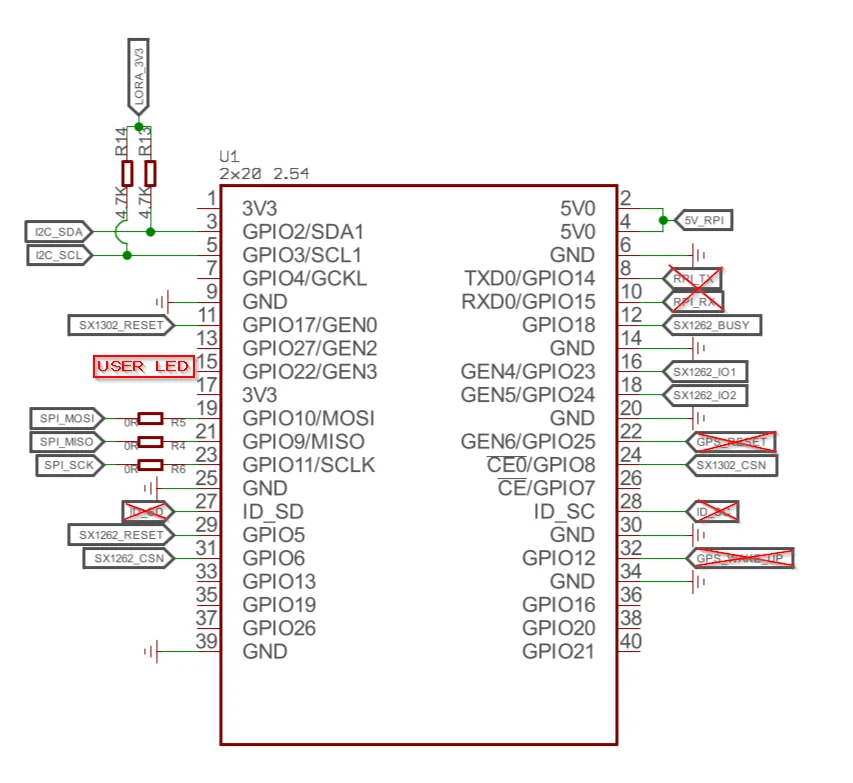

The table below transcribes the connections in Clockwork Bird’s annotated header image. It is a community reference, not a complete manufacturer-issued schematic or a measurement of every M1 revision. The drawing also uses SX1262 labels, while the generic Semtech reset script uses SX1261 names.

The crossed-out GPS/UART annotations do not establish a GPS-equipped M1. Leave GPS-specific setup out of your configuration unless your actual hardware provides it. The published diagram also leaves the user button and fan control unresolved. Clockwork Bird’s pinout investigation

Resolve Reset-Script Conflicts #

A reset script selects electrical outputs, not merely software preferences. Semtech’s upstream reset_lgw.sh targets its CoreCell reference design. Its defaults include GPIO23 for concentrator reset, GPIO18 for power enable, GPIO22 for auxiliary reset, and GPIO13 for an AD5338R reset. Semtech reset-script source

Seeed’s older setup instructions change the two reset assignments to GPIO17 and GPIO5 but retain the other reference-design entries. Compare those values with the annotated M1 image before following the example. Seeed WM1302 setup instructions

Inference: If GPIO18 connects to an auxiliary radio output as drawn, configuring the Pi end as an output creates a risk of electrical contention. The disagreement establishes a verification requirement, not proof of damage or proof of one universal M1 wiring map.

With all power disconnected, trace accessible connections between the header and module connector. Record the board revision and both endpoints. A continuity result establishes connectivity, while the component documentation establishes signal direction and electrical limits.

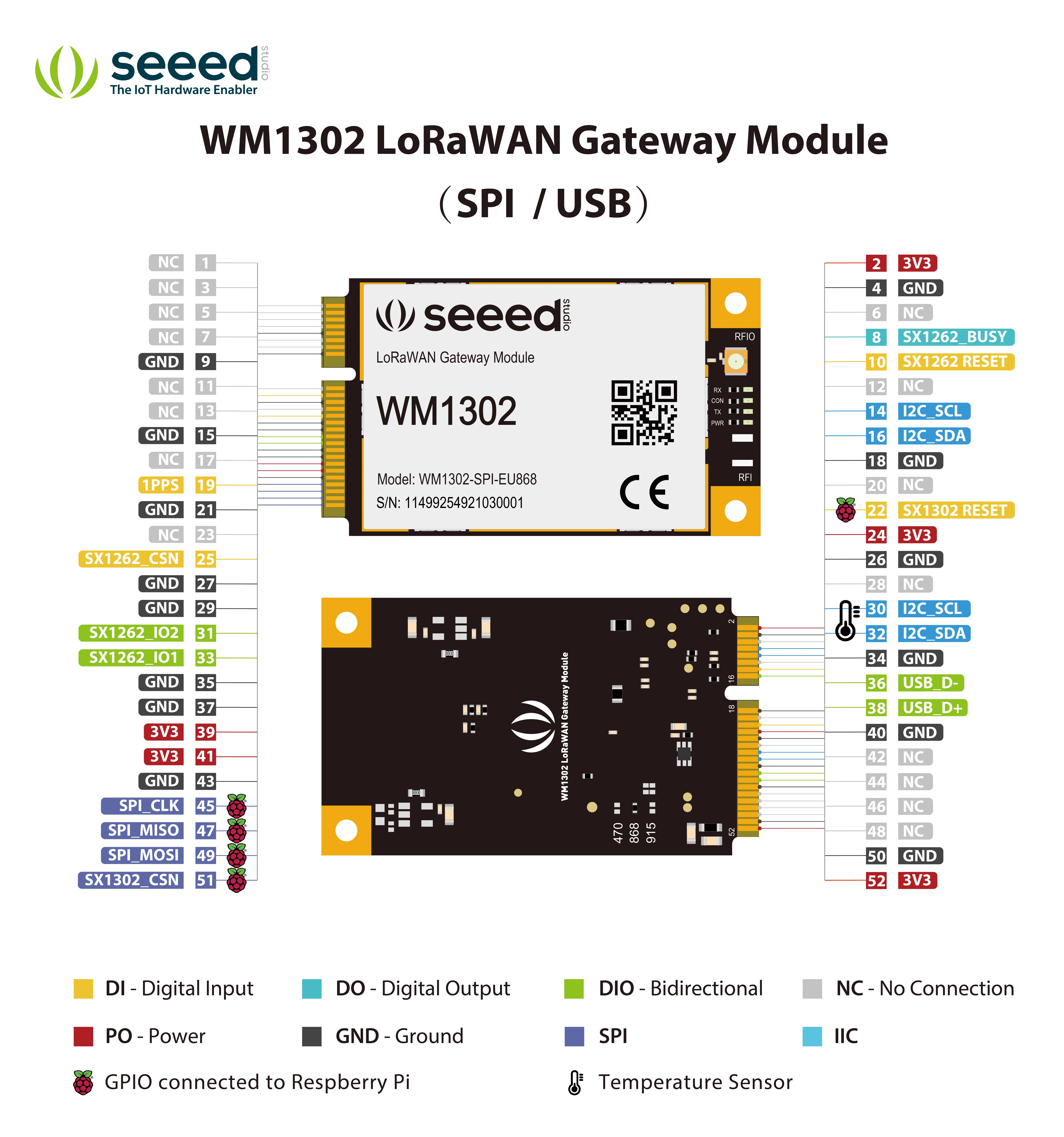

Use the manufacturer’s module diagram below to avoid mixing edge-connector pins with Pi header pins. The auxiliary-radio labels describe the published module reference and do not establish identical silicon or supported features across every module revision. Seeed WM1302 module pinout

Prepare Raspberry Pi OS #

Record the host environment on your spare installation:

cat /etc/os-release
uname -r
tr -d '\0' < /proc/device-tree/model

The OS release, kernel, and Pi model form the starting point for reproducibility. Record them before comparing your results with an older tutorial.

Install inspection and build tools:

sudo apt update
sudo apt install git build-essential i2c-tools gpiod
sudo raspi-config

In Interface Options, enable SPI and I2C, then reboot. SPI serves the concentrator path, while I2C supports the management devices discussed below. Avoid importing unrelated GPS serial-port changes from another HAT tutorial.

Inspect the exposed interfaces:

ls -l /dev/spidev* /dev/i2c-*
i2cdetect -l
gpiodetect
gpioinfo
gpioset --version

These commands list device nodes, adapters, GPIO controllers, line information, and the installed GPIO tool version. i2cdetect -l lists adapters without scanning device addresses. A /dev/spidev0.0 file establishes an exposed SPI interface, not communication with a working concentrator. i2c-tools manual , Raspberry Pi GPIO guidance

Account for GPIO Versions #

Do not copy global GPIO numbers from another machine. Old scripts write through /sys/class/gpio, an interface the kernel documents as deprecated. New userspace integrations should use the GPIO character-device interface, with the correct controller and line offset. Linux GPIO documentation

Also inspect gpioset --help before adapting a script. Version 1 and version 2 differ in syntax and process behavior. The current tool holds requested lines by default, and its portable contract does not guarantee their state after process exit. libgpiod gpioset documentation

Raspberry Pi documents an output-persistence behavior in its kernel, with options to change it. Record the actual kernel configuration instead of assuming every Linux system behaves identically. Neither updated numbering nor a newer GPIO tool resolves an incorrect electrical mapping. Raspberry Pi GPIO usage guide

Test the User LED #

After verifying GPIO22 belongs to the LED and removing conflicting GPIO consumers, edit the boot configuration:

sudoedit /boot/firmware/config.txt

Modern Raspberry Pi OS mounts the boot configuration at /boot/firmware/config.txt. Older images use /boot/config.txt, the path in the 2023 article. Back up the active file before editing it. Raspberry Pi config.txt documentation

Add the LED overlay under a section applying to your Pi, such as [all]:

dtoverlay=gpio-led,gpio=22,label=lorawan,trigger=heartbeat

The gpio parameter uses BCM numbering. label names the Linux LED device, and trigger=heartbeat assigns the kernel heartbeat trigger. Clockwork Bird reports this assignment for the M1, and Raspberry Pi’s overlay reference documents these parameters. Original LED observation , gpio-led overlay reference

After reboot, inspect the registered LED:

ls -l /sys/class/leds/
cat /sys/class/leds/lorawan/trigger

The expected result is a lorawan LED entry with heartbeat selected in brackets. A blinking LED demonstrates this GPIO/driver path. It does not report successful LoRaWAN registration, radio reception, or Helium status.

Investigate I2C Devices #

An I2C address is a clue, not a device identity. Clockwork Bird observed responses at 0x60 and 0x39, then read ATECC608 information through the crypto library. The temperature-sensor identification remained tentative in the original article.

Start with the adapter listing from the previous section. Broad i2cdetect scans send probing transactions rather than passively observing traffic, and the upstream manual warns about disruption. Avoid routine scans of a running gateway or unknown attached devices. i2c-tools probing behavior

A Stronger Temperature-Sensor Lead #

STTS751 is a source-supported candidate for 0x39. Semtech’s temperature-driver header explicitly associates 0x39 with STTS751-0DP3F. This strengthens the original hypothesis without identifying every board populated at this address. Semtech STTS751 driver header

After identifying a compatible component and ensuring no other process owns it, these commands read its identification registers:

sudo i2cget 1 0x39 0xfd b
sudo i2cget 1 0x39 0xfe b

Here 1 selects the verified bus, 0x39 selects the device, and b requests an SMBus byte-data read. For an STTS751-0, the documented product ID at 0xFD is 0x00, and the manufacturer ID at 0xFE is 0x53. These transactions select register addresses but do not program configuration values. STTS751 datasheet, register map and identification registers

Compare the readings with the chip marking and documentation. A matching pair adds evidence for identification, while an error calls for checking the bus and ownership before changing hardware configuration. The sensor measures its local temperature, which is a different measurement from the Pi’s CPU temperature.

Inspect the Secure Element #

The ATECC608 is a separate authentication component. Treat its configuration, serial number, public key, and protected key material as distinct concepts. A readable public key does not reveal the corresponding private key.

Microchip’s CryptoAuthLib provides the device interface. Its cryptoauthtools repository contains examples built around the library. Prepare the native library and Python bindings for your target system using those projects’ instructions before invoking an example. Installing an unrelated Python package or copying one script alone does not establish an operational I2C backend. Microchip CryptoAuthLib , Microchip cryptoauthtools

From a prepared cryptoauthtools/python/examples directory, the original article’s inspection command is:

sudo python3 info.py -i i2c

The -i i2c argument selects the interface. With a virtual environment, use its explicit Python interpreter and ensure it locates the matching native library. sudo python3 selects the system interpreter in many installations, which explains some module-import failures.

The reviewed info.py reads revision information, the serial number, configuration, and lock status. For a locked data zone, it attempts to retrieve the public key from slot 0. It does not run the example provisioning sequence. A slot-0 public-key failure alone does not establish a broken device. Microchip info.py source

Do not run config.py to repair an inspection error. Its source includes configuration writes, zone-locking calls, and key generation. Its default key-generation path also matters on an already configured device. Microchip config.py source

Microchip’s documented provisioning profiles illustrate why a locked data zone does not mean every slot has identical access permissions. Those profiles do not establish the M1’s exact configuration. Preserve the device’s existing configuration and consult the matching part documentation before planning any reuse involving keys. Microchip memory and slot-access policies

Handle Fan and Button Unknowns #

A three-pin fan socket does not establish its voltage, polarity, or control method. Photograph its pin numbering and read the fan label. Resolve power and control connections before attaching a replacement or choosing a GPIO overlay.

Likewise, the original investigation leaves the button’s GPIO unknown. Search for a driver or configuration tied to your board revision, then verify connectivity with power disconnected. Do not assign every apparently unused GPIO as an output to find the button.

A fresh OS installation does not automatically reproduce the original appliance’s cooling policy. During your first sustained test, observe fan operation and temperatures together. Preserve the enclosure’s airflow path and stop the test if the assembly loses its required cooling.

Choose a Gateway Stack #

Separate board support from server protocol. A compatible LoRaWAN server does not fix an incorrect reset routine or RF calibration. First choose software with support for the concentrator, carrier wiring, OS, and regional configuration.

ChirpStack lists a seeed_wm1302 SPI model. This is evidence of module support, not a promise of a complete M1 image or support for every M1 revision. Avoid treating the separate SenseCAP M2 installation instructions as M1 firmware instructions. ChirpStack hardware support , ChirpStack’s Seeed installation target

For The Things Stack, its documentation recommends LoRa Basics Station over the legacy Semtech UDP forwarder. Station provides TLS and token-based authentication alongside centralized configuration features. Existing UDP examples are useful for understanding packet forwarding, but their server-address settings do not provide those protections. The Things Stack UDP guidance , LoRa Basics Station documentation

Prepare the Upstream Tools #

Build on the target Pi in a new working directory:

git clone https://github.com/Lora-net/sx1302_hal.git
cd sx1302_hal
git rev-parse HEAD
make

Save the commit identifier with your build output. A completed build establishes compiler compatibility, while the radio still requires the verified reset implementation and correct configuration. Semtech’s documentation explains the role of its HAL and helper programs. SX1302 HAL build and tool documentation

Review the reset file before running hardware-access tools:

sed -n '1,180p' tools/reset_lgw.sh

Do not copy this file into the runtime directory unchanged. Semtech documents automatic reset-script use by its hardware-access programs, including tools used during identification. Your review must cover every assigned pin, signal direction, GPIO API, and startup/shutdown state.

After completing board verification, use the selected stack’s instructions to read the concentrator EUI and register the gateway. Preserve the module’s calibration and RF settings when adding the server configuration. In Semtech UDP configuration, gateway_ID represents the EUI, while The Things Stack’s console Gateway ID is its human-readable registration identifier. The Things Stack gateway configuration

Prove Sensor Delivery #

Use staged evidence to locate the first failing layer. A gateway marked online establishes a server connection. Your acceptance test also needs a known sensor, matching frequency plan, and a decoded application payload.

The following sequence is a proposed test plan, not measured M1 results:

For an OTAA sensor, also confirm the activation exchange and subsequent uplink. OTAA means over-the-air activation, the join procedure used to establish a session. A received join request alone does not establish a successful join or downlink path. The Things Stack activation documentation

Worked diagnosis: Suppose the gateway connects to its server and reports its EUI, but your sensor never appears. Prioritize the sensor’s transmit configuration, selected receive channels, antenna path, and radio logs. Reprogramming the ATECC608 would not address the missing evidence in this scenario.

Second diagnosis: Suppose a sensor packet appears locally but never reaches the application. Correlate the packet time with gateway and server events, then inspect routing, device registration, and decoding. An RF packet in a log is insufficient evidence for blaming the payload decoder until the server accepts the event.

Troubleshooting by Symptom #

Treat each correction as one experiment. Save the previous configuration, change one variable, repeat the same check, and record whether the expected evidence appeared.

Create Your Hardware Record #

Use this template to turn the investigation into a reproducible handover:

Carrier revision and photographs:
Concentrator model, interface and RF band:
Host model / OS / kernel / GPIO tool version:
Supply / antenna / cooling arrangement:
Verified pin mapping and evidence:
Unresolved nets and excluded features:
Software repository and commit:
Reset implementation and GPIO ownership:
Gateway EUI / server / frequency plan:
Sensor activation and decoded uplink evidence:
Reboot recovery result:
Original-card location and rollback procedure:

Decision exercise: You have an inexpensive bare carrier with no module label, and a more expensive assembly with readable labels and documented operation. Decide which fits your project after adding the missing Pi, concentrator, antenna, supply, and verification time to the comparison. The stronger choice follows the total cost and evidence required for your intended service, rather than the carrier’s advertised price alone.

Expected reasoning: A learning project tolerates unresolved wiring if you have measurement tools and time. A gateway supporting operational sensors needs repeatable startup, cooling, software support, and demonstrated delivery. Record which unresolved condition would stop your deployment.

Next Steps #

Start by completing the hardware record and resolving the reset-script discrepancies. Then bring up one known sensor and save evidence through application decoding before adding more devices.

If your goal is mesh messaging, first compare the protocol roles in our Meshtastic, MeshCore, and Reticulum guide . Sharing LoRa radio technology does not establish firmware compatibility. Consult MeshtasticD’s supported-hardware documentation for a messaging deployment instead of treating this LoRaWAN procedure as a Meshtastic conversion.
